Monitor
22P1D

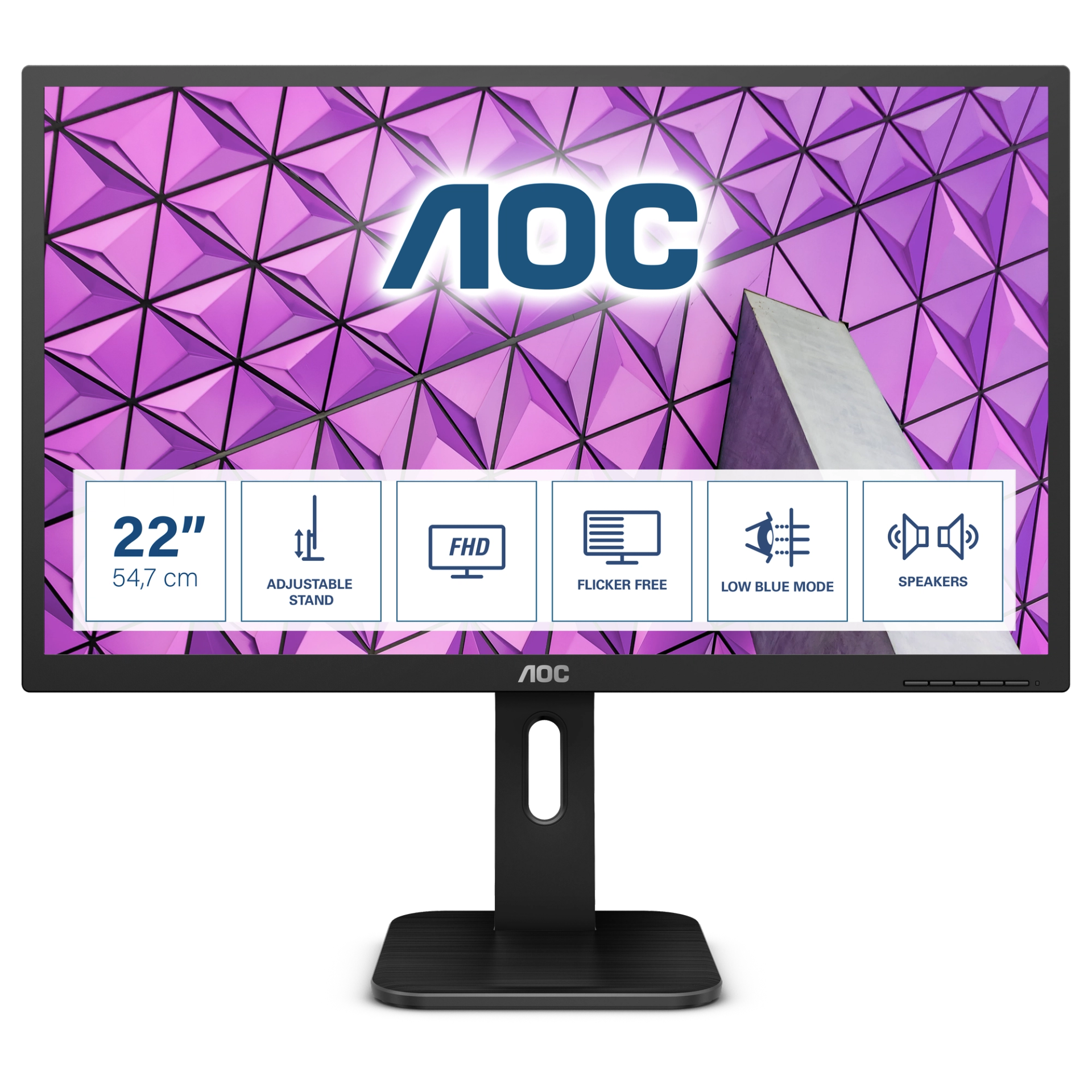

21.5” Full HD ergonomic business display
Monitor22P1D
Sleek looks and rich colours from every angle
The 22P1D is an entry levelbut fully capable business display with a 21.5" TN panel in FHD (1920x1080px) resolution. Its VGA, HDMI and DVI inputs offer rich connectivity options. Easy assembly without screws, flexible stand with 130 mm height adjustment included.
Specifications
- Bezel type (front)Normal
- Light FX (RGB)
- Removable stand
- Speakers
- Speaker power2 W x 2
- Built-in Microphone
- Bezel Colour (front)Black
- Bezel finishing (front)Texture
- Cabinet colour (backside)Black
- Cabinet finishing (backside)Texture
- Vesa wallmount100x100
- USB fast charge port
- Audio Input
- Microphone in
- D-SUB (VGA)1x
- DVI1x DVI-D
- HDMIHDMI 1.4 x 1
- Audio OutputHeadphone out (3.5mm)
- Screen size (inch)21.5
- Screen size (cm)54.61
- Flat / CurvedFlat
- Display viewing Area (HxW) in mm476,64 x 268,11
- Display hardness3H
- Pixel Pitch (mm)0.2482
- Panel resolution1920x1080
- Aspect ratio16:9
- Panel typeTN
- Backlight typeWLED
- Max Refresh rate60 Hz
- Response time GtG2 ms
- Static contrast ratio1000:1
- Dynamic contrast ratio50M:1
- Viewing angle (CR10)170/160
- Display colours16.7 Million
- Brightness in nits250 cd/m²
- Resolution nameFHD
- Tilt-5/23
- Height adjust (mm)130mm
- Swivel-175/175
- PivotYes
- VESA Bracket CompatibilityVESA-P1
- EAN4038986126304
- Warranty period3 years
- MTBF50.000 hours (excluded backlight)
- MTBF (excluding panel)50.000 hours
- OSD languagesEnglish, French, German, Czech, Russian, Kroatian, Chinese (traditional), Chinese (simplified), Spanish, Portuguese, Italian, Dutch, Swedish, Finnish, Polish, Japanese, Ukranian, Turkish, Korean
- Power supplyInternal
- Power source100 - 240V 50/60Hz
- Power consumption on (Energystar test method) in watts14.2
- Power consumption standby in watts0.28
- Power consumption off in watts0.22
- Energy classE
- Product dimensions incl. base (WxHxD) mm506.0(H) x 504.4(W) x 198.8(D)
- Packaging dimensions (WxHxD) mm387(H) x 715(W) x 159(D)
- Gross weight incl. package (in kg)6.2
- Net weight excl. package (in kg)4.2
- CB
- TUV-GS-Mark
- TUV Ergo
- EAC
- Microsoft WHQL
- Pixel policyISO 9241-307
- Energy starEnergy star 8
- WEEE
- PVC/BFR free housing
- Mercury free
- Recycable packaging material100 % recycable
- Post-consumer recycled plastic65 % to 85 %
- TCO Certified8
- EPEATSilver
- Digital signal frequency30 -83kHz (H) 50 -76 Hz (V)
- Colour space (sRGB) CIE 1931 %99.0
- Colour space (Adobe RGB) CIE 1931 %73.0
- Flicker-FreeFlicker Free
- Blue Light TechnologyLow Blue Light
- HDMI cable1.8
- DVI cable1.8
- Audio cable1.5
- Power cable C131.8
